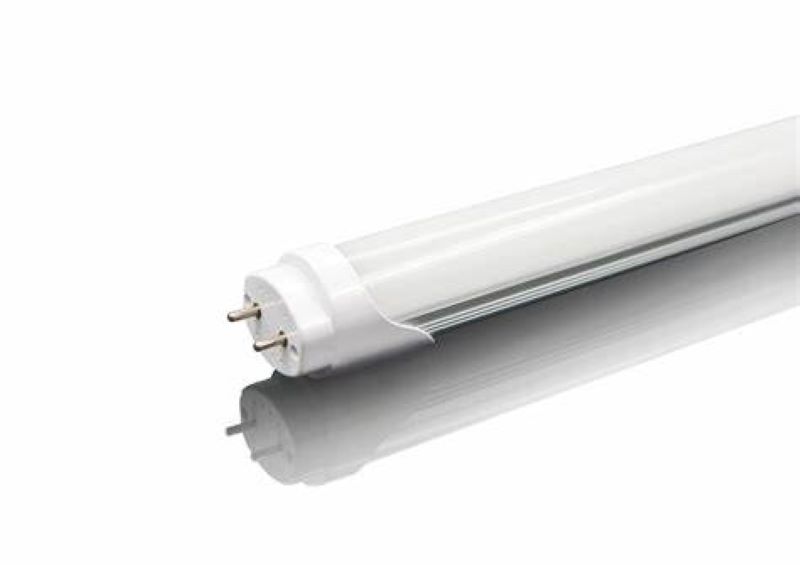

T8 LED Emergency Tubes
T8 LED emergency light bracket (bracket +inverter + battery pack +
wiring)
Emergency LED fluorescent tube, emergencyLED tube is suitable for
emergency LED fluorescent tube power 6-30W
1. Put the emergency power supply intothe T8 bracket, with multiple
sizes of 0.6m, 1.2m, 1.5m, 1.8m LED fluorescenttubes, single lamp
and
double lamp brackets for customers to choose, LEDfluorescent tube
power 8-300W, connect The lamp can be used;
2. One lamp for dual purposes: it can beused as a general lighting
lamp, but also can realize the function of emergencylight led tube,
automatic
identification and automatic switching of workingstatus.
3. Three-color indicator lights anddetection switches are installed
on the outer wall of the bracket, so thatusers can know the working
status at any time
and check whether the lamps canbe used for emergency lighting at
any time;
4. The design of the emergency powersupply circuit is perfect and
scientific, with a slender shape, suitable forinstallation in a
bracket;
5. The emergency power supply can also beinstalled into the grille
lamp panel, ceiling lamp panel, tri-proof lampbracket or base,
etc., to realize
the function of emergency lighting of thelamp;
6. Multiple emergency power products areavailable for selection.
After a power failure, the lamp can be used forfull-power emergency
lighting
or half-power emergency lighting.
7. When the mains power is supplied, theinverter makes the
emergency lighting battery pack in a charging standby state;when
the mains AC is
suddenly interrupted due to accidents such as earthquakes,attacks,
explosions, etc. or other emergency situations, the inverter
isimmediately
converted to emergency lighting batteries The group DC continues
tosupply power to ensure the lighting and safety of the lamps. The
red,
green,and yellow LED lamp beads respectively display the normal
main power, charging,and fault status. After the battery is fully
charged,
it will automaticallyenter the maintenance power state, compensate
for self-discharge, and maintainthe battery. Performance and
service life. Matched with batteries of differentcapacities, it can
reach emergency lighting time of 1-5 hours, adapting to theneeds of
different occasions. It can be used in a temperature environment
of-20—+60.
8. Connect the circuit in strictaccordance with the wiring diagram
and do not open the cover at will;
9. The user can regularly check thedischarge of the inverter, that
is, cut off the mains power supply, and use thebattery to discharge
and illuminate
until it stops automatically;
2. Product description
Specification model: T5, T6, T8, T10,etc.
Light source chip: Epistar 2835LED lampbeads are light, which is
80% energy-saving than incandescent lamps.
Lamp beads brand: , Osram, Hongli=
Service life: up to 50,000 hours ofservice life
Input voltage: AC100-240V 50/60HZ
Protection level: filled withhigh-quality sealing and waterproof
silicone, the outer layer is tightlywrapped with a waterproof
silicone sleeve, using
transparent AB glue,protection level IP65/IP67
Heat dissipation scheme: The circuitboard adopts a full glass fiber
circuit board with low water absorption andgood moisture
resistance, with a
thickness of 1.2mm and fast heat dissipation
Shell material: PC, aluminum,PC+aluminum, all-plastic thermoplastic
engineering plastics [the best solutionfor waterproofing
conventional and
all-plastic first]
Light transmittance efficiency: thetransmittance of the transparent
PC cover is 94-96%, and the transmittance ofthe large stripe PC
cover with
light diffusion is 90-92%. Light diffusion PCcover light
transmittance 85-88%
Flame retardant grade: PC cover Flameretardant grade: 94-V2 or
94-V0
Battery voltage: 12V
Specification capacity: 18W half an hour,18W 1 hour, 18W 1.5 hours,
18W 2 hours, 18W 3 hours
Energy saving and environmentalprotection: 60% energy saving with
high efficiency, low carbon and no UV. TheLED light source has long
life and
low power consumption and is durable.Odorless, non-toxic PC
plastic, with excellent physical properties, can workfor a long
time at low
temperatures
Use range
Used in hospitals, schools, supermarket chains,offices, office
buildings, bars, hotel decorations, home lighting, lamp
lightsources, engineering
lighting, parking lots, western restaurants, cafes, clubs,shop
windows,
Environmental decorative lighting for exhibitionhalls, art halls,
museums, etc.; office lighting, factory lighting, librarylighting,
subway lighting,
shop lighting, shopping mall lighting, hotellighting, etc., can be
described as lighting places
,There is LED T8 tube.
The t8 tube is a kind of energy-saving lamps, trefers to the
diameter of the tube itself, and 8 refers to the circumference
ofthe tube is 8 cm. The
letter "t" is usually used to name a lamp, anda "t" is equivalent to one-eighth Inch, and one inch = 25.4mm, so the diameter of thet8 tube is
25.4mm.
The t8 tube has a very high luminous efficiency, which isconducive
to energy saving, and has a long life. It is often used in
commercial
Business place. Can save electricity bills, butalso because you
don’t have to change light bulbs frequently
About the labor cost.
Three, matters needing attention:
This emergency power supply includesbattery pack
• Emergency lightingrechargeable battery 12.0V SC2500mAh
•Composed of 10 nickel-cadmiumrechargeable batteries SC2500mAh1.2V
welded, the parameters after single-rowcombination:
•Battery pack size/double row(length, width and
thickness)=240*44*24mm
• Average weight =430g/group;
•Power/emergency time =LED10W/120min
•Emergency lamp batteries oftenrequire long-term continuous trickle
charging of the battery with a smallcurrent. Because nickel-cadmium
batteries have extremely high battery energydensity, overcharge,
overdischarge, high and low temperature resistance,excellent life,
safety
performance and storage, so they are widely used , Hasalso become
the battery of choice for fire emergency power supply.
•Compared with lithiumbatteries, nickel-cadmium batteries have more
safety and price competitiveadvantages.
• During use, pay attention tocharging the battery after it is
discharged as much as possible, the batteryperformance will be
better;
