    3W nfrared LED|high power led|high power ir led|high power led ir|high power led china

    Ask Lasest Price
    Brand Name : Queendom
    Model Number : SMD 3W LEDs
    Certification : EU ROHS, EN60425, REACH
    Payment Terms : T/T
    Delivery Time : 7-15
    • Product Details
    • Company Profile

    3W nfrared LED|high power led|high power ir led|high power led ir|high power led china

    Model:3W High Power nfrared LED's -Imitation Lumen Series

    Notes:

    1. All dimensions are in millimeters (inches).

    2. Tolerance is±0.25mm(0.01”) unless otherwise specified.

    3. Lead spacing ismeasured where the leads emerge from the package.

    4. Specifications aresubject to change with notice.


    Peak parameters:


    Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

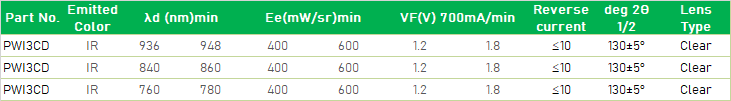

    Product number::Absolute Maximum Rating(At TA=25°C)

    Notes:

    Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

    is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from

    the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.


    product properties:

    Main chips: Opto Lei (ED), Tyntek (Tyntek) JapanDowa, Epistar (Epistar)

    Chip specifications: the size is 8*8mi 9*9mil10*10mil 10*20mil, 30*30mil, 40*40mil, 45*45mil and other chip sizes;

    Material selection: high temperature resistantJapanese glue, 99.99% pure gold wire welding;

    Power factor: general power numbers are: 0.25w,0.5w, 1w, 3w, 5w, etc.

    Package form: in-line, SMD, imitation lumen mediumand high power

    Colloid color: can be customized according torequirements: [main appearance is colorless, transparent, blue]

    Luminous color: can be customized according torequirements

    Beam angle: 130±5° (angle can be adjusted accordingto customer requirements)

    Product features: anti-high temperature, anti-deadlamp, anti-static

    Certification standards: SGS certificate in linewith EU ROHS, EN60425, CE standards



    package:

    Application areas:


    灯珠案例-红外 (2).jpg灯珠案例-红外 (4).jpg
