    8mm led lights|8mm led holder|Lights Emitting Diodes|8mm Led for sale

    Ask Lasest Price
    Brand Name : Queendom
    Delivery Time : 7-15
    Payment Terms : T/T
    Model Number : F8mm LEDs
    Certification : EU ROHS, EN60425, REACH
    • Product Details
    • Company Profile

    8mm led lights|8mm led holder|Lights Emitting Diodes|8mm Led for sale

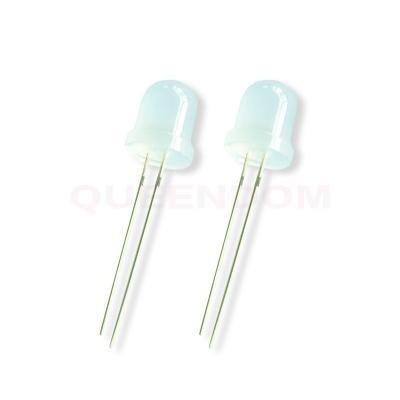

    Model: 8mm Round Diffused Leds


    Peak parameters:


    Ø Absolute Maximum Rating(At TA=25°C)SymbolRatingsUnits
    ParameterPD60mW
    Continuous Forward CurrentIF20mA
    Peak Forward Current *1IFP100mA
    Reverse VoltageVR5V
    Thermal Resistance Junction To BoardJ-B/°C/W
    Operating Temperature RangeTOPRMinus 30°C To plus 60°C
    Storage Temperature RangeTSTGMinus 40°C To plus 80°C
    Manual Solding TemperatureTSOL260°C± 10°C For 3~5 Seconds
    ESD SensitivityESD2000V HBM

    Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

    Product number::Absolute Maximum Rating(At TA=25°C)

    Notes:

    Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

    is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from

    the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

    Quality 8mm led lights|8mm led holder|Lights Emitting Diodes|8mm Led for sale for sale
